Secure Shared Credentials

I’d like to announce the release of a new Haskell library named credentials, which allows you to securely share encrypted credentials (secrets) from within your Haskell applications. An administration CLI has also been released which allows you to manage the credentials or access them from non-Haskell applications.

If you just want to know how to use the library or CLI, skip ahead to the Usage section.

This work is based on credstash and was motivated by work with my previous colleagues at Fugue, as well as a desire for similar functionally directly embeddable as a library in Haskell.

Contents

Introduction

When deploying modern applications either on-premise or within a cloud environment such as AWS, you typically need access to a multitude of secrets such as database credentials, API keys for external third parties, or credentials for inter-service communication with our micro-service overlords.

One concrete example would be to retrieve a database connection URI such as postgresql://postgres.heroku.com/production?user=fred&password=secret when a web application server starts. Since this connection URI is the gateway to your data - it needs to be stored as securely as the data it protects.

The credentials library and the related credentials-cli are a simple and secure solution to this problem, designed to rely on a minimal number of external dependencies that are as close to operations-free as possible.

It uses Amazon’s Key Management Service (KMS) for master key management, performs all encryption locally, and then stores encryption parameters and metadata in DynamoDB to facilitate sharing and administration.

Some of the features of the library and CLI include:

What follows is a slightly whirlwind tour of the use of KMS, DynamoDB, and the actual encryption routines.

Key Management Service

Encryption and decryption of credentials use a master encryption key, which usually creates the additional problem of how to securely store and manage said key. When the key used to encrypt any number of credentials becomes compromised, all credentials themselves are also compromised.

Secure administration and usage of the master keys is a difficult problem typically requiring a solution such as dedicated Hardware Security Modules (HSMs) to support features like revocation, renewal, and replacement.

KMS provides a programmatic API resembling a remote HSM. It offers a number of useful features such as centralised key management, secure storage, key renewal and revocation, as well as auditing via CloudTrail. This means the master key we’ll use is stored in secure HSM-backed storage and never leaves the KMS service.

One basic model using the Encrypt and Decrypt API operations is similar to that of an HSM:

  1. You generate a master key via the API or developer console. This key, once generated is never accessible, and the address is only used as a parameter to additional API calls via an Amazon Resource Name (ARN) or alias you assign when creating the key.

  2. You send data to encrypt/decrypt to the API and say encrypt/decrypt this blob with the specified master key, and the resulting ciphertext or plaintext is returned.

This has two drawbacks. Firstly, your data is transmitted unencrypted to Amazon. Secondly, each API operation has a 4KB limit for the blob (plaintext or ciphertext) you transmit.

To avoid this, we’ll use a slightly different model based on the GenerateDataKey API operation:

  1. You generate a master key via the API or developer console. This key, once generated is never accessible, and the address is only used as a parameter to additional API calls via an Amazon Resource Name (ARN) or alias you assign when creating the key.
  2. Create a fresh data key using the GenerateDataKey API operation.
  3. Use the data key to encrypt your data locally.
  4. Use KMS to encrypt the data key with the specified master key. This is called key wrapping, and the encrypted data is now called a “wrapped key”.
  5. Store the encrypted data and the wrapped key.

For point 5 above, it’s important to point out the concept of “encraption” from Alex Schoof:

Note: this is not “encraption” (the practice of storing a key next to the data that it protects), because without access to the master key that wraps the data key, the data key is useless. It is an opaque blob.

To decrypt the data, we now:

  1. Retrieve the encrypted data and the wrapped key.
  2. Use KMS to decrypt the wrapped key, to obtain the data key.
  3. Use the data key to decrypt the encrypted data.

Hence the terminology “master key” when referring to the keys provided by KMS. These keys are not infact used for encryption of your actual data, but instead a single master key can be used to protect many data keys, which in turn are used to encrypt your actual data.

DynamoDB

Once credentials have been encrypted, the ciphertext and related encryption parameters need to be stored in a centralised location to allow sharing, and preferrably in storage that is operations-free.

Since one Amazon service is already in use (KMS), we’ll use DynamoDB although there is nothing preventing the use of other storage backends such as S3, Postgres, or Redis outside of request latency, ciphertext size, etc.

To store the encrypted credentials, we’ll support only insertion of a new version of the contents for the given credential name. This allows use-cases such as rolling out a new service while an existing version of the service is still using a similarly older version of the same credential.

This dicates the schema for our DynamoDB table since we’ll need to query via the credential name, and possibility it’s version.

To ensure the version is correctly incremented in the presence of concurrent writes we’ll use the following Optimistic Locking strategy:

  1. Perform a strongly consistent read to obtain the latest version for name.
  2. Increment the version.
  3. Generate a unique revision based on the current timestamp and desired version.
  4. Attempt to insert with a conditional check that will only allow the insert to succeed if the result would be the desired version exists with the exact revision we just generated.
  5. On ConditionalCheckFailedException error response, delay and then retry by returning to step 1, otherwise exit successfully

Additionally since the internal representation of version is convenient as an integer (for sorting, incrementing), if we support version deletion this sequence will be non-monotonic if the latest is deleted, and will contain gaps if historical versions are deleted.

To hide this from the end user we’ll instead return an opaque revision which can be used along with the name as part of an efficient secondary index query.

Identity and Access Management

Granular access control of this scheme can be controlled via standard Amazon Identity and Access Management (IAM) features.

Some examples include:

IAM offers alot of granularity and power at the expense of being confusing for the uninitiated. A couple of canned IAM policies are provided in the README to help you get started.

Service Pricing

A single master key in KMS costs $1 USD per month. The DynamoDB table throughput is configured to use 1 provisioned read and 1 provisioned write, so if you are using less than the free tier limit of 25 reads and 25 writes per second, only the KMS charges will apply.

If you are likely to utilise much more than 25 reads/writes per second, you can estimate your monthly charges by using the AWS pricing calculator.

TL;DR, $1 USD per month for the predicted usecase.

Cryptographic Routines

The encryption routine can be condensed into the following Haskell code:

-- We call KMS to generate a 64 byte data key, which returns both
-- the ciphertext and plaintext variants of the key.
(ciphertextKey, plaintextKey) <- KMS.generateDataKey (64 bytes)

-- Then we split the plaintext key into two 32 byte parts, one is used
-- to initialise the block cipher and the other is to compute an
-- HMAC SHA256 of the encrypted ciphertext.
let (dataKey, hmacKey) = ByteString.splitAt (32 bytes) plaintextKey

-- A null IV (0) is used to initialise the cipher for the CTR operation,
-- because no data key is ever reused.
ciphertext <- ctrCombine (AES256 dataKey) nullIV plaintext
digest     <- hmac hmacKey ciphertext

-- The following components are all stored in the storage backend,
-- and are made available to the decryption routine.
return ( ciphertextKey -- The encrypted data key from generateDataKey.
       , ciphertext    -- The resulting encrypted ciphertext.
       , digest        -- A digest used to check ciphertext integrity.
       )

A couple of the important points above to make note of:

  1. The use of a null initialisation vector (IV), because of key uniqueness.
  2. An AES256 block cipher running in CTR mode.
  3. Generating an HMAC digest of the encrypted ciphertext (Encrypt-then-MAC).

Decryption is then as follows (with the variables corresponding to those above):

-- We call KMS to decrypt the wrapped key.
plaintextKey <- KMS.decrypt ciphertextKey

-- Again split the plaintext key into it's sub-parts.
let (dataKey, hmacKey) = ByteString.splitAt 32 plaintextKey
    expected           = hmac hmacKey ciphertext

-- Assert the integrity of the ciphertext by calculating and
-- comparing a new HMAC SHA256 digest.
unless (expected == digest) $
    throwM IntegrityFailure

-- Perform decryption of the ciphertext.
plaintext <- ctrCombine (AES256 dataKey) nullIV ciphertext

return plaintext

If you’d like to read some of the reasoning for selecting CTR mode vs CBC mode, and likewise using an Encrypt-then-MAC scheme vs an authenticated block cipher mode, please see the following references for detailed explanations:

Usage

You will need your AWS credentials available in either the standard ~/.aws/credentials file, or AWS_ACCESS_KEY_ID and AWS_SECRET_ACCESS_KEY environment variables if running on a local development machine. If you’re running on an EC2 instance, the IAM role credentials will be retrieved from the instance metadata automatically.

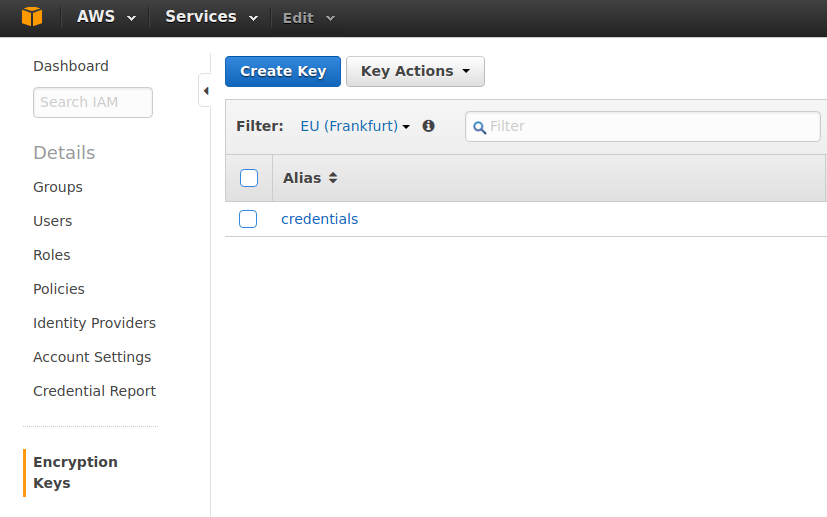

A KMS master key should also be created. You can do this under Encryption Keys in the Identity and Access Management section of the Amazon developer’s console:

If you are likely to be using only one master key initially, it’s recommended to create a new key with the alias credentials, as that is what the CLI and library parameters default to.

CLI Commands

Installation of the CLI can be achieved by either cabal install credentials-cli or stack install credentials-cli. This will install an executable named credentials to either cabal or stacks preferred location.

A basic example of using the CLI is as follows:

$ credentials setup
Setting up dynamo:///credentials in eu-central-1.
Running ...
dynamo://dynamodb.eu-central-1.amazonaws.com:443/credentials:
  status: created
$ credentials insert --name foo --secret "A magical secret."
Writing new revision of foo to dynamo:///credentials in eu-central-1...
dynamo://dynamodb.eu-central-1.amazonaws.com:443/credentials:
  name: foo
  revision: 82687c4
$ credentials list
Listing contents of dynamo:///credentials in eu-central-1...
dynamo://dynamodb.eu-central-1.amazonaws.com:443/credentials:
  foo:
    - 82687c4 # latest
$ credentials select --name foo
Retrieving foo from dynamo:///credentials in eu-central-1...
dynamo://dynamodb.eu-central-1.amazonaws.com:443/credentials:
  name: foo
  revision: 82687c4
  secret: A magical secret.

Additional means of formatting the output and logging suitable for use in shell scripts is available, see the --help text for more information.

Library API

Once the KMS master key and DynamoDB table (via credentials setup) exist, you can use the credentials library by adding it to the build-depends section of your project’s cabal file. The AWS credentials used for authentication and authorisation are discovered by the underlying amazonka library.

The following example retrieves a database connection string containing a sensitive password, when a webserver starts. It’s worth pointing out the setup all pertains to the underlying amazonka library, since all of the credentials operations run in a MonadAWS context.

{-# LANGUAGE OverloadedStrings #-}

import Control.Lens

import Credentials

import Data.ByteString (ByteString)

import Network.AWS
import Network.Wai              (Application)
import Network.Wai.Handler.Warp (run)
p
import System.IO (stdout)

main :: IO
main = do
    -- A new 'Logger' to replace the default noop logger is created,
    -- which will print AWS debug information and errors to stdout.
    lgr <- newLogger Debug stdout

    -- A new amazonka 'Env' is created, which auto-discovers the
    -- underlying host credentials.
    env <- newEnv Frankfurt Discover

    let table = Credentials.defaultTable
        key   = Credentials.defaultKeyId
        name  = "secret-database-uri"

    -- We now run the 'AWS' computation with the overriden logger,
    -- performing sequence credentials operation(s).
    -- For 'select', the plaintext and corresponding revision is returned.
    (uri, _) <- runResourceT . runAWS (env & envLogger .~ lgr) $ do
        -- Selecting the credential by name, and specifying 'Nothing' for the
        -- revision results in the latest revision of the credential.
        Credentials.select mempty name Nothing table

    -- We can now connect to the database using our sensitive connection URI.
    run 3000 (app uri)

app :: ByteString -> Application
app uri rq f = ...

Hopefully this illustrates the simple, transparent nature of retrieving encrypted credentials. Please see the README or documentation for more information.
